- PNEUMATIC POSITIONING SYSTEM - EASYMEX-CF is equipped with a pneumatic positioning system to position the sensor in contact with the film.
- PROFILE - EASYMEX-CF provides a bubble profile for every haul-off oscillation.
- SYNTROL - EASYMEX-CF if connected directly to SYNTROL supervisory system along with Typhoon or Flyer air ring provides auto profile control.
- PLC, INDUSTRY 4.0 & IoT - EASYMEX-CF is equipped with PLC integrated with OPC-UA protocol for industry 4.0.
Capacitive Gauging System for Blown Film Lines

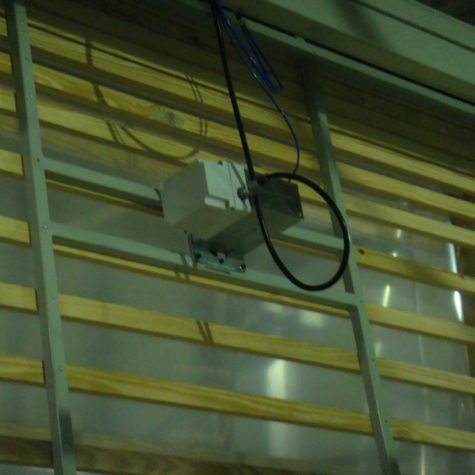

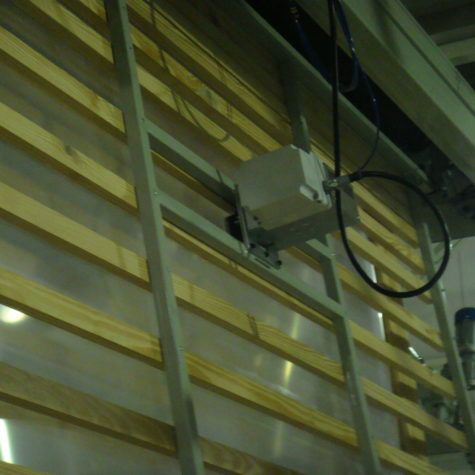

EASYMEX-CF is an in-contact thickness gauging system for blown film lines.
It provides a continuous thickness measurement around the bubble and it is installed directly on the collapsing frames of the oscillating haul off units.
It represents the best solution where there is no space for a rotating type system like skymex.
EASYMEX-CF is based on capacitive technology, the dielectric characteristics of the film that is in contact with the sensor produce a variation of the signal proportional to the film thickness.
