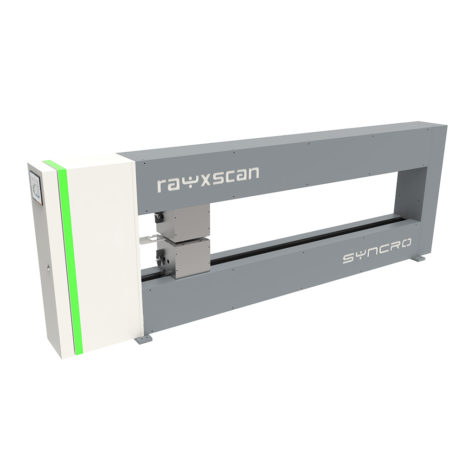

X-Ray Gauging System

The RAYXSCAN uses an X ray beam transmission through the homogeneous material to be measured, from which it can measure the thickness, usually shown in micron or the weight [g/m2].

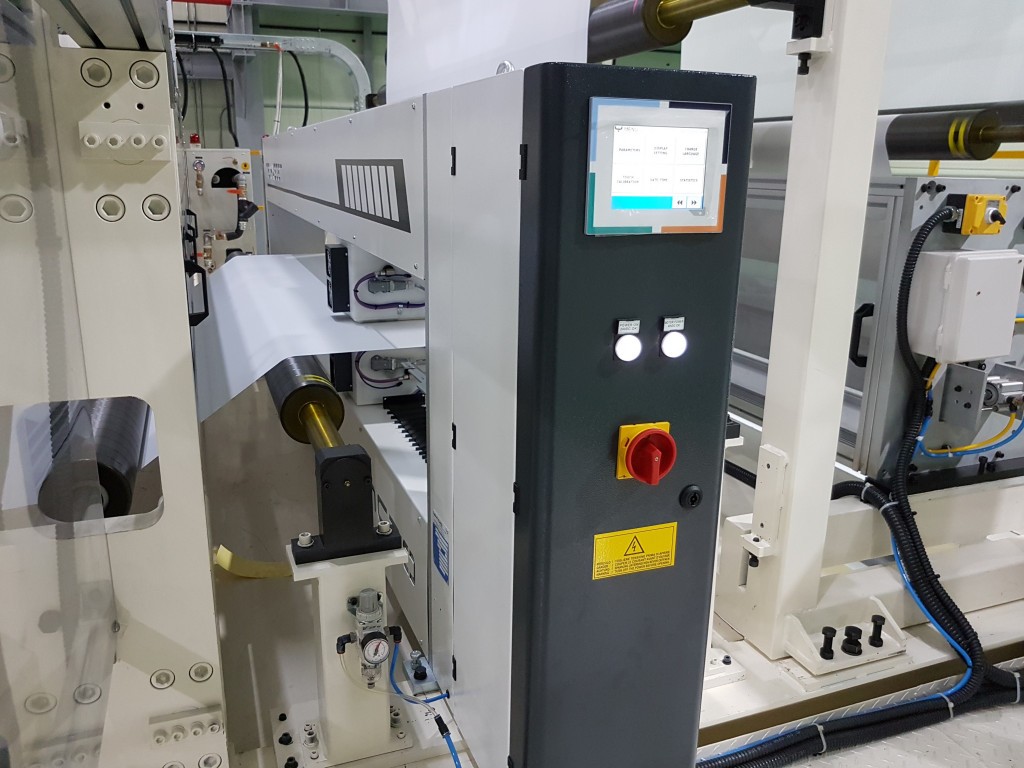

An X-ray source is situated in a housing, while another housing contains the receiver and is positioned opposite the transmitter at a set distance (Gap). When a homogeneous layer of material is positioned between the transmitter and receiver, part of the energy transmitting to the receiver is absorbed by the material. The part which is not captured by the receiver is directly proportional to the thickness of the measured film according to the main features of the material.
